Introduction of dehydration screen:
The dewatering sieve is also called "fine sand recovery machine", its main function is dehydration, desilting, degumming, it can be used for sand washing in sand and stone plant, coal slime recovery in coal preparation plant, tailings dry discharge in dressing plant, etc. Stone dewatering screen, mine dewatering screen, slime dewatering screen, tailings dewatering screen, etc. The dehydration screen adopts double electrode self-synchronization technology, universal eccentric block and adjustable amplitude vibrator. It is mainly composed of screen box, vibration exciter, support system and motor. Two unconnected vibrators are driven by the tape coupling shaft to perform synchronous reverse operation. The centrifugal forces generated by the two sets of eccentric masses are superimposed on the component of the vibration direction, and the reverse centrifugal force cancels out to form a single excited vibration along the vibration direction. To make the screen box reciprocate linearly.
Features of dewatering screen/fine sand recovery machine:
1. Low noise and easy maintenance.
2. Reasonable structure, strong and durable.
3. Good dehydration effect, safe and reliable.
4. Large screening capacity and high screening efficiency.
5. Light weight, easy disassembly and assembly, easy maintenance, no sudden segment spring.
Parameters of dewatering screen/fine sand recovery machine:
|
型號 Model |
篩面斜角(°)
Screen Bevel |
常用篩孔尺寸（mm）
Screen Size |
入料量(t/h)
Feed Volume |
電機功率(kw)
Motor Power |
激振器型號
Exciter Model |
重量(t)
Weight |
|
FKT-1036 |
-5~-3 |
0.3~0.6 |
10~35 |
2×1.1 |
2×YZO-20-4 |
3.8 |
|
FKT-1236 |
-5~-3 |
18~65 |
2×2.4 |
2×YZO-30-4 |
4.5 |
|
FKT-1536 |
-5~-3 |
30~90 |
2×3.1 |
2×YZO-40-6 |
5.7 |
|
FKT-1838 |
-5~-3 |
40~120 |
2×5.5 |
4×39-6 |
6.6 |
|
FKT-2138 |
-3~0 |
60~150 |
2×7.5 |
4×45-6 |
8.2 |
|
FKT-2538 |
-3~0 |
80~200 |
2×11 |
4×64-6 |
11 |
Note: Parameters are subject to update without notice, please contact us.

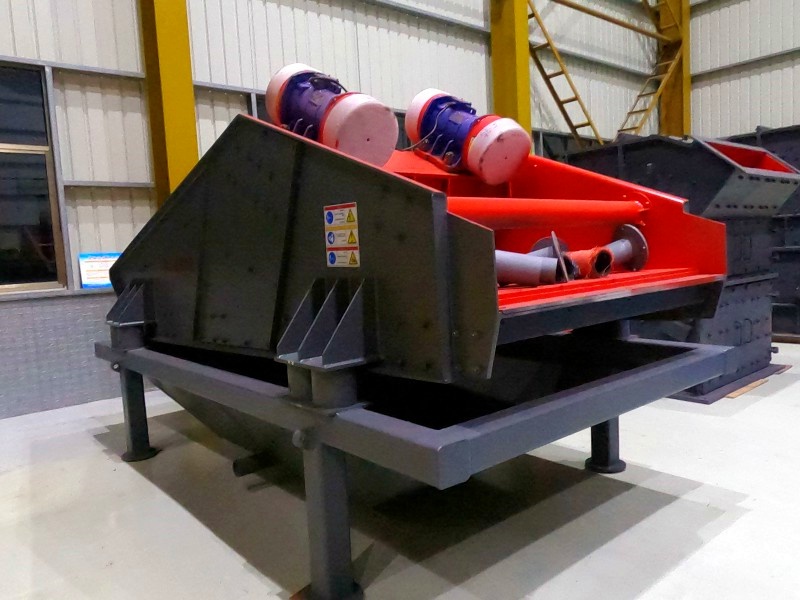

Product pictures of dewatering screen/fine sand recycling machine:
Sample download of dewatering screen/fine sand recycling machine:
Sample of dewatering screen/fine sand recycling machine
